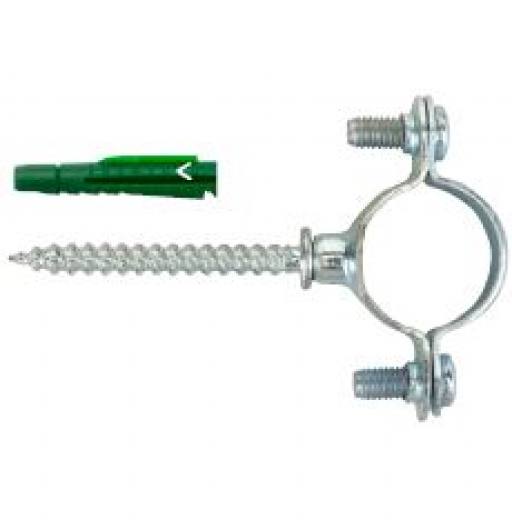

Light pipe clamp with pin and anchor

08COLFI - (Cod. 810)
Light pipe clamp with pin and anchor
wishlist
Add to the wishlist
Material: Fe P04 UNI EN 10130-91+A1-98
Nylon dowel
Electrolytic galvanizing UNI ISO 2081:2018 th. 6 ÷ 9 [µm]

CHARACTERISTICS: both parts that make up the clamp are assembled and the entrance has 6MA thread.
USE: for fixing multilayer pipes and light pipes.
CodeØ
8101010SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8101212SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8101414SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8101615-16SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8101818-3/8"SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8102020SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8102222-1/2"SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8102424SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8102626SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8102828SS:11x1,0 - SI:13x1,2M6M6x456x3010/100wishlist
8103232SS:11x1,0 - SI:13x1,2M6M6x456x305/100wishlist
8103535SS:11x1,0 - SI:13x1,2M6M6x456x305/100wishlist
8104242-1.1/4"SS:10x0,9 - SI:13x1,2M6M6x456x305/100wishlist
8105050-1.1/2"SS:12x0,9 - SI:16x1,2M6M6x456x305/100wishlist
8106060-2"SS:12x0,9 - SI:16x1,2M6M6x456x305/100wishlist
NOTE:
SS = UPPER BRACKET SI = LOWER BRACKET


TECHNICAL SHEET


NOTE:
SS = UPPER BRACKET SI = LOWER BRACKET
